Подробная информация о продукте:
Оплата и доставка Условия:
|
| Название продукта: | Шатер партии | Материал рамки: | Алюминиевый сплав 6061 |
|---|---|---|---|
| Бортовая стена: | Стенки ПВК/АБС/Гласс | Размер: | ширина 3-50м |
| Цвет: | Подгонянная белизна, | Особенность: | водоустойчивый и огнеупорный |
| Крышка крыши: | двойная ПВК-покрытая ткань полиэстера 850г/Скм |
1. Dome event tent Specification:
1.Easy to assemble and demount convenient to transport and storage
2.Elegant and magnificant apperance
3.No interior poles structure design to give 100% use of interior space
4.Wide range of application
5. TUV certificated
2. Dome event tent size:
The clear span width is available in 3m,6m,8m,10m,12m,15m,18m,20m,25m,30m,35m,40m,45m,50m.
The length of the tent is no limited,and can be increased or decreased by 3m or 5m bay distance.Wind Loading is 80-100km/hr.
3.Outdoor Tent Materials
Frame: High Reinforce Aluminum,anti-rust surface, GB6061-T6; Tested by CE,SGS,BV.etc .
PVC covering material(roof and sidewall):
850 g/m2 for roof, 650 g/m2 for walls ,
Double PVC-Coated Polyester, flame retardant, UV resistance,
waterproof, comply to DIN 4102 B1, M2 ( European standard ), max wind speed allowance: 100km/h. Tested by CE,SGS,BV.etc .

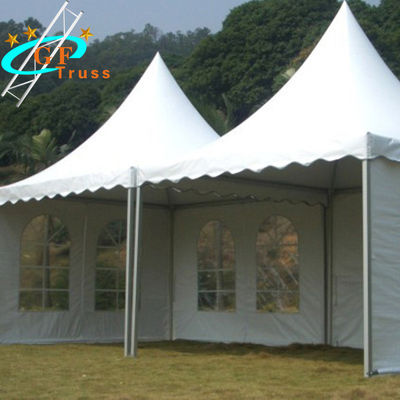

Pagoda Tent Parameter
| Size | Side-Height | Frame Material | Roof Cover | Side-Cover |
| 3x3m | 2.6M | 84x48x3mm | 850g/sqm | 650g/sqm |
| 4x4m | 2.6M | 84x48x3mm | 850g/sqm | 650g/sqm |
| 5x5m | 2.6M | 84x48x3mm | 850g/sqm | 650g/sqm |
| 6x6m | 2.6M | 84x48x3mm | 850g/sqm | 650g/sqm |
| 8x8m | 3M | 120x68x3mm | 850g/sqm | 650g/sqm |
| 10x10m | 3M | 120x68x3mm | 850g/sqm | 650g/sqm |
Materials Details:
The main products of us are all kinds of truss, like spigot truss, light-duty bolt truss, heavy duty bolt truss, folding truss, background small truss, stage and LED screen support.
Truss size as below:
200mm*200mm
290mm*290mm
300mm*300mm
390mm*390mm
400mm*400mm
400mm*600mm
520mm*520mm
520mm*760mm
600mm*1000mm
